We have applied all the principles of engineered minimalism that are the hallmarks of Restrap’s luggage range to our Switch Rack: lightweight construction, durable materials, quick and simple fitment/removal. READ MORE

The heart of Restrap’s Switch system; the Switch Rack is compatible with the Restrap Switch Panniers and all other Switch Multimount products as well as any product or accessory that uses 64mm-spaced mounting points, like bottle cages etc.

All mounting hardware included.

Features:

Lightweight aluminium alloy construction
High Grade 7075-T6 aluminium axles in 1mm, 1.5mm and 1.75mm thread pitch options
Multiple 64mm-spaced mounting points
Compatible with Restrap Switch products
25mm velcro strap to fit all seat post sizes and shapes
Quick flip system provides maximum wheel clearance across all bike sizes

Which axle do you need?

All Switch Racks come with an axle supplied. This is designed to replace the one current axle. It is compatible with 142mm and 148mm (boost) spacing and comes supplied with spacers to tune fit.
It is imperative to use the correct thread pitch for your frame
To determine the correct thread pitch, remove your current axle. Many have the thread pitch printed on the axle. It will be either 1mm, 1.5mm or 1.75mm
If it is not printed on the axle, you will need a ruler. Count out ten threads from the end of the axle and measure the distance. If it is 1cm, you have a 1mm thread pitch. 1.5cm = 1.5mm thread pitch, 1.75cm = 1.75mm.
If you are still unsure, check with your frame manufacturer directly.

Fitting the Switch axle:

Remove your bike’s current thru-axle
Remove M5 bolts from both ends of Restrap Switch thru-axle
Fit the Restrap Switch thru-axle using a 6mm allen key. Use as many 3mm washers as necessary to centralise the top bar over the rear wheel
Use the supplied axle cone spacer for compatible frames

Fitting the Switch Rack:

Slot rack legs over either end of the axle
Screw in M5 bolts to secure
Ensure the rubberised fabric strap is tightly wrapped around the seatpost or seat tube
Use velcro strap to tightly secure the seatpost/tube mount
Tighten all bolts

Tailoring fit:

Quick flip system allows you to flip the top bar to maximise wheel clearance and provide a range of seat post or frame mounting points.
Simply rotate the top bar and ensure it is centralised.
Remove the velcro strap from the seatpost/tube clamp and rethread to ensure the Restrap logo tab is on the drive side (because aesthetics are important)

Compatibility:

Only compatible with bikes with a 12mm diameter thru-axle
Compatible with bikes with 142mm or 148mm (Boost) spacing
Not designed for use with full-suspension frames
IMPORTANT – ensure axle thread pitch matches your bike. Do not attempt to fit without the correct thread pitch.
UDH – bikes with a UDH derailleur will require a Restrap Switch UDH adaptor (available separately)
SRAM Transmission/T-Type direct mount derailleurs will require a Restrap Switch Full Mount adaptor (available separately)

Spares:

High Grade 7075-T6 aluminium axles in 1mm, 1.5mm and 1.75mm thread pitch are available separately

Weight:

395g (without axle and bolts)
485g (including axle and bolts)

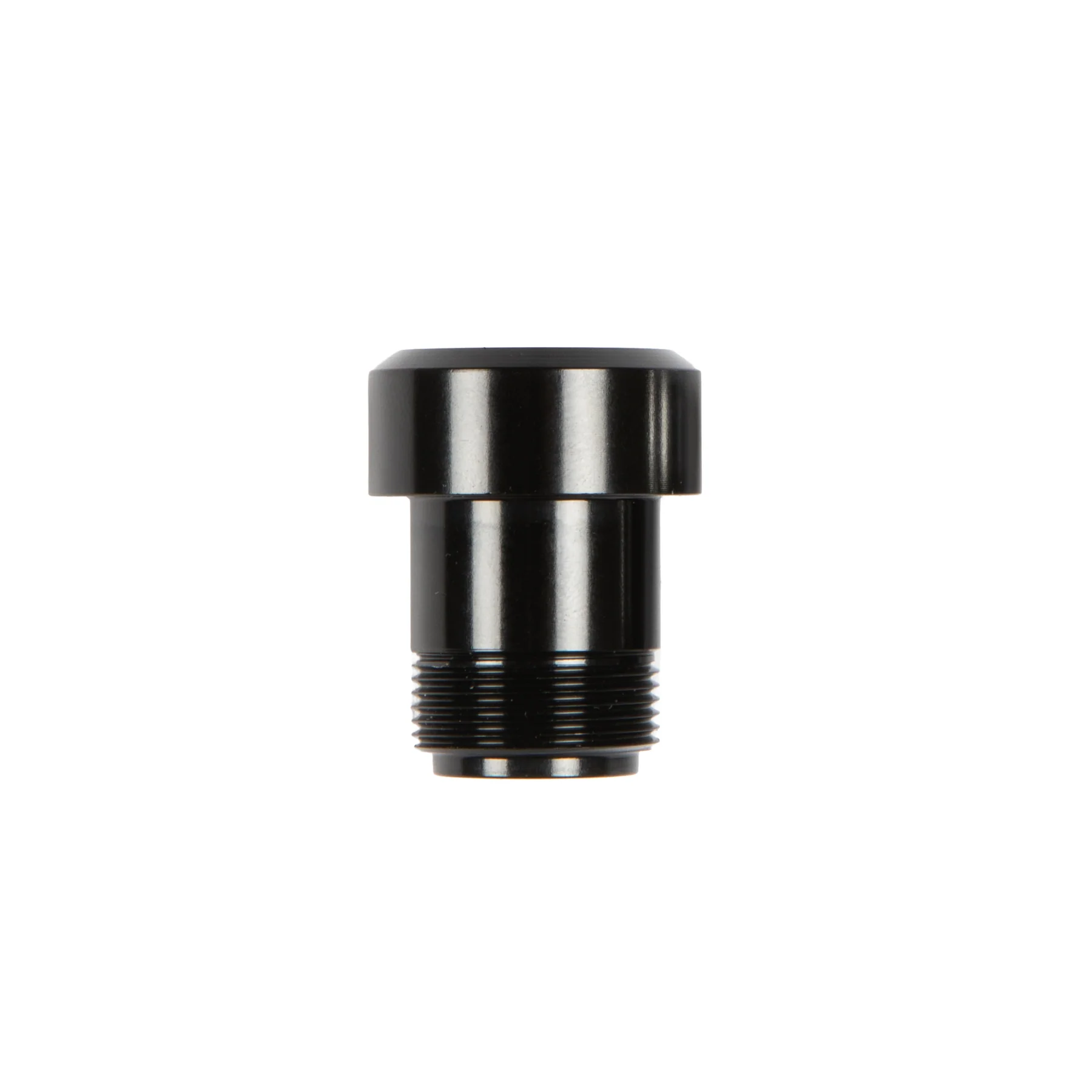

Switch Full Mount Adaptor

Switch Top Bag (15 Litres)

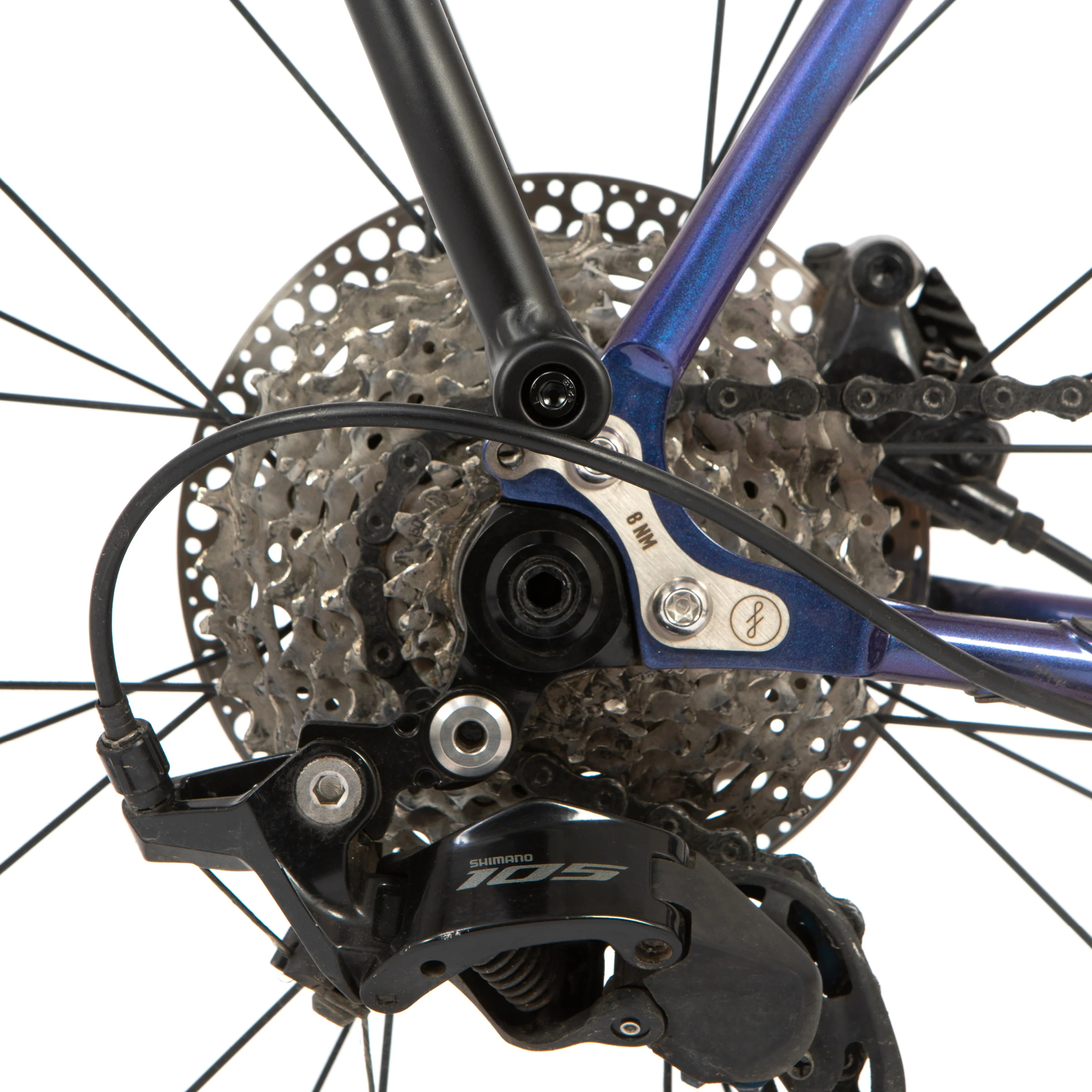

Switch Rack - Direct Mount

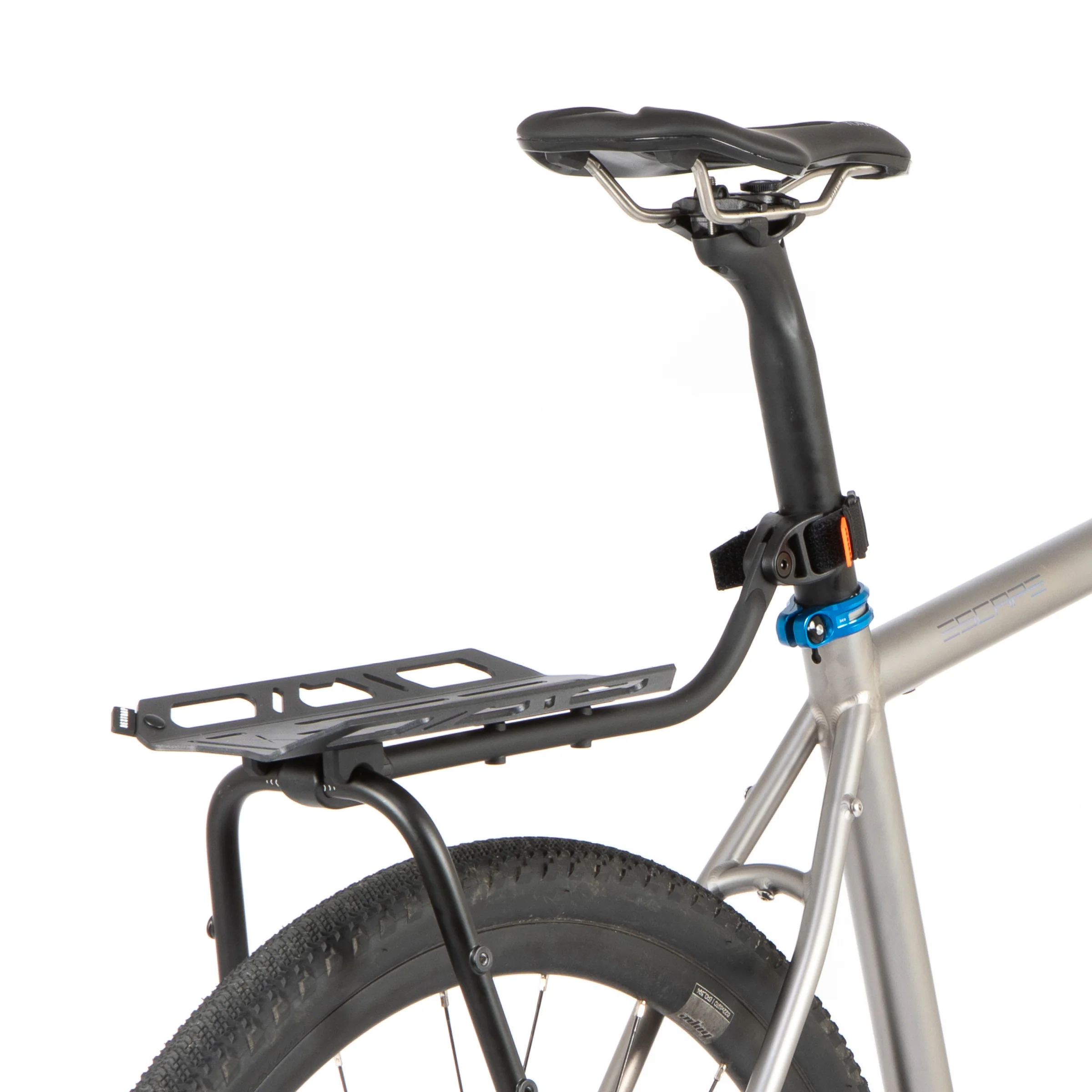

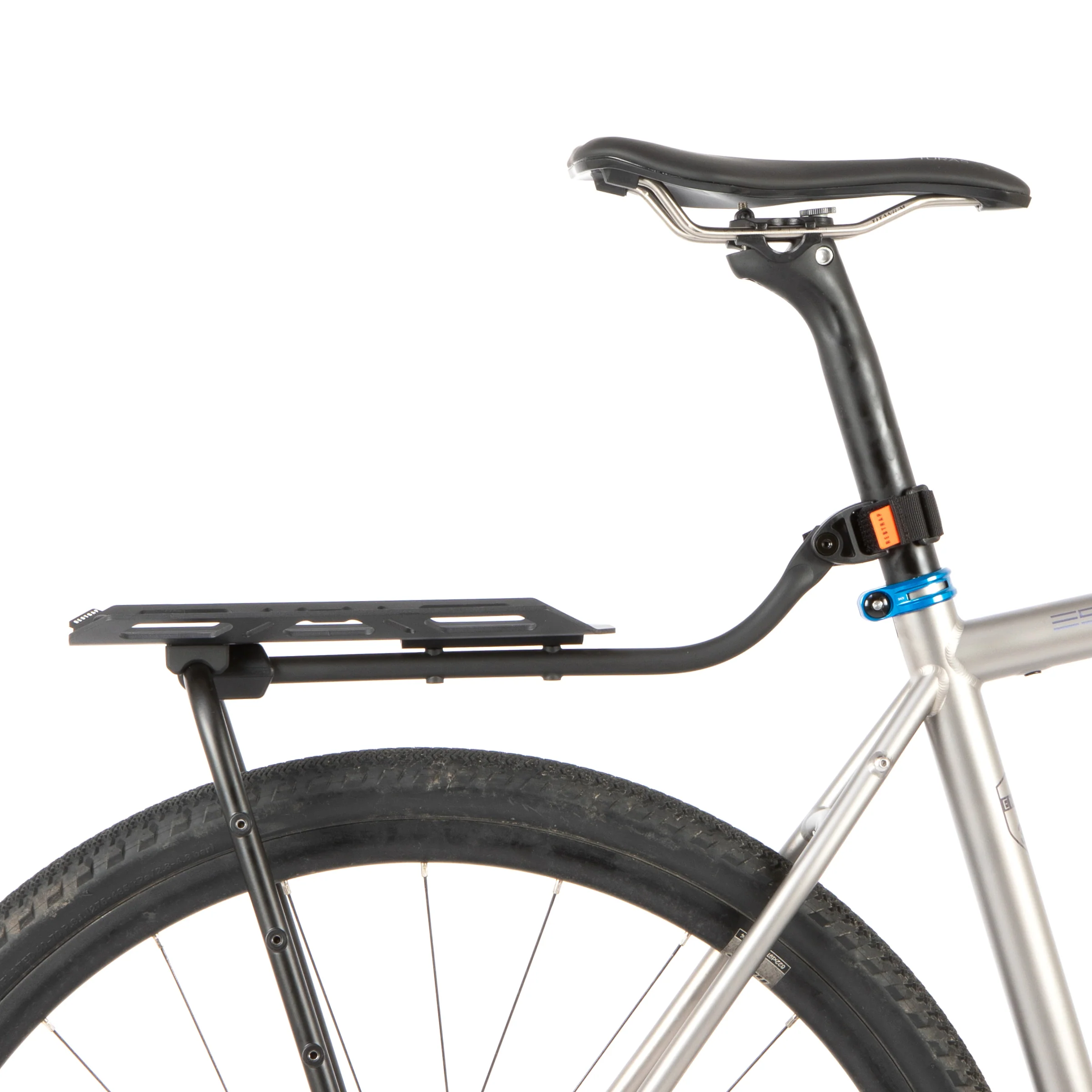

Switch Rack Cage
